Parts For Ventura 3

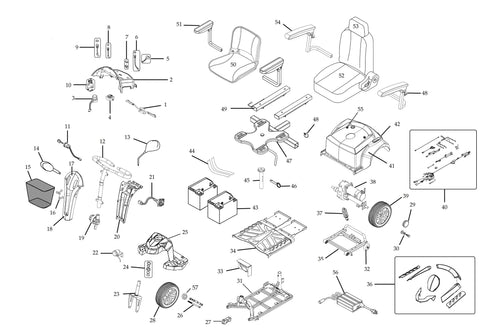

Please refer to parts diagram in order to select the correct replacement part for your Ventura 3. Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
| 1 | Forward-Reverse Assy. | VENT-01 |
| 2 | Face Plate Assy. Folding Seat | VENT-04 |
| 2 | Face Plate Assy. Capt. Seat | VENT-05 |
| 3 | Speed Control | S31001 |
| 3 | Speed Dial Knob | LRM412103-11 |
| 4 | Battery Gauge | S31208B |
| 5 | Turn Signal | VENT-72 |
| 6 | Headlight Switch | S31122 |
| 6 | Head Light Switch - Substitute | GT8072W38 |
| 7 | Fast-Slow Switch | GT8072W41 |
| 7 | Fast-Slow Switch Cover | GT8072W42 |
| 8 | Horn Button | S31012 |
| 8 | Horn Switch Cover | GT8072W43 |
| 9 | Flasher Switch | GT8072W32 |
| 9 | Flasher Switch Cover | GT8072W44 |
| 10 | Turn Signal Relay Capt. Seat | VENT-76 |
| 11 | Key Switch | S41160 |
| 12 | Handle Bar Assy. | VENT-03 |
| 13 | Mirror Right | VENT-53 |
| 13 | Mirror Left | VENT-54 |
| 14 | Turn Signal Light Left | GT8072W35 |
| 14 | Turn Signal Light Right | GT8072W36 |
| 14 | Turn Signal Bulb | GT8072W53 |
| 15 | Basket | S35003-PL |
| 16 | Basket Mount Set | VENT-55 |
| 17 | Front Decoration Red | VENT-61 |
| 17 | Front Decoration Blue | VENT-62 |
| 18 | Front Tiller Cover | VENT-06 |
| 19 | Tiller Swivel Assy. | VENT-02 |
| 20 | Rear Tiller Cover | VENT-07 |
| 21 | Charger Port | S31147 |
| 22 | Head Light Assembly | VENT-88 |
| 23 | Front Fork Assy. | VENT-48 |
| 24 | Stem Bearing Set | VENT-13 |
| 25 | Front Shroud | VENT-45 |
| 26 | Front Axle Assy. | VENT-50 |
| 27 | Coupler | VENT-46 |
| 28 | Front Wheel Assy. Solid | VENT-49 |
| 28 | Front Wheel Assy. Pneumatic | VENT-58 |
| 29 | Hub Cap | VENT-70 |
| 30 | Rear Axle Bolt Assy. | VENT-71 |
| 31 | Front Frame | VENT-47 |
| 32 | Anti-tip Wheel | VENT-16 |
| 33 | Controller | VENT-08 |
| 34 | Middle Shroud | VENT-11 |
| 35 | Rear Frame | VENT-18 |
| 36 | Shroud Decoration Red | VENT-51 |
| 36 | Shroud Decoration Blue | VENT-52 |
| 37 | Shock Absorber | VENT-15 |
| 38 | Motor-Transaxle-Brake Assy. | VENT-19 |
| 38 | Transaxle | VENT-20 |
| 38 | Motor | VENT-21 |
| 38 | Electromagnetic Brake | VENT-22 |
| 39 | Rear Wheel Assy. Solid | VENT-28 |
| 39 | Rear Wheel Assy. Pneumatic | VENT-57 |
| 39 | Pneumatic Tire Only | VENT-59 |
| 39 | Inner Tube | VENT-60 |
| 40 | Wire Harness Folding Seat | VENT-37 |
| 40 | Wire Harness Captain Seat | VENT-38 |
| 41 | Rear Shroud Folding Seat | VENT-12 |
| 41 | Rear Shroud Capt. Seat | VENT-69 |
| 42 | Rear Light Capt. Seat | VENT-66 |
| 42 | Rear Turn Signal Lt Capt. Seat | VENT-67 |
| 42 | Rear Turn Signal Rt Capt. Seat | VENT-68 |
| 43 | Battery (order 2) | LRM412123 |
| 43 | Battery Case & Batteries | LRM402208 |
| 44 | Battery Strap | VENT-09 |
| 45 | Seat Post | VENT-36 |
| 46 | Seat Post Pin | S31152 |
| 47 | Seat Plate Folding Seat | VENT-73 |
| 47 | Seat Plate Capt. Seat | VENT-74 |
| 48 | Armrest Knob | S31052 |
| 49 | Seat Slides | VENT-65 |
| 50 | Folding Seat Assy. | VENT-41 |
| 51 | Left Arm Assy. Folding Seat | VENT-29 |
| 51 | Right Arm Assy. Folding Seat | VENT-30 |
| 51 | Left Arm Pad Capt. Seat | VENT-31 |
| 51 | Right Arm Pad Capt. Seat | VENT-32 |
| 52 | Capt. Seat Assy. 18" | VENT-42 |
| 52 | Capt. Seat Assy. 20" | VENT-43 |
| 53 | Head Rest Capt. Seat 18" | SEC2010N |
| 53 | Head Rest Capt. Seat 20" | SF2010 |
| 54 | Left Arm Assy. Capt. Seat | VENT-33 |
| 54 | Right Arm Assy. Capt. Seat | VENT-34 |
| 54 | Arm Pad Folding Seat | VENT-35 |
-
