Parts For Delta™ Ultra-Light 1000, Full-Electric Bed

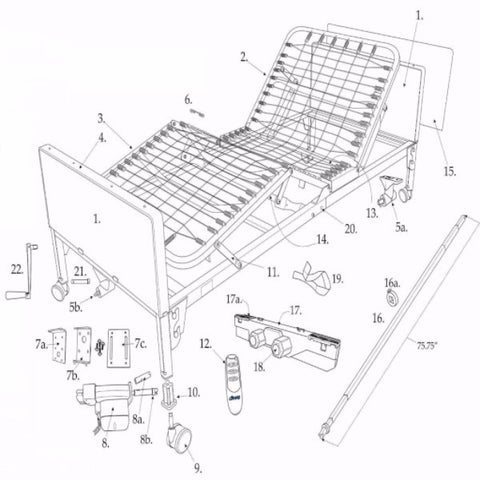

Please refer to parts diagram in order to select the correct replacement part for your Parts For Delta™ Ultra-Light 1000, Full-Electric Bed Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
| 1 | Head Board | 15544H |
| 1 | Foot Board | 15544F |
| 1 | Set of both | 15544H-F |
| 2 | Head Spring Section | 15541 |
| 3 | Foot Spring Section | 15549 |
| 4 | Head Board Panel Frame | 15544HPF |
| 4 | Foot Board Panel Frame | 15544FPF |
| 5a | Head Board Gear Assembly | 15544HGB |
| 5b | Foot Board Gear Assembly (w/o crank) | 15544FGB |
| 6 | Sleep surface hook | 15005P-1040 |
| 7a | Motor Bracket (Before serial # 1S120329900...) | 15033MBN |
| 7b | (After serial # 1S120329900...) | 15033MBN-DELTA |
| 7c | (After serial # 1S120329900...) | 15544GBMB |
| 8 | Motor Hi/Low & Gear box converter * Must order parts 7b & 7c (After serial # 1S120329900...) | 15033MHLN-MGBA |
| 8 | Gear Box Converter Alone * Must order parts 7b & 7c | 15033MHLN-GB |
| 8 | Mounting Screws | 15033MHLN-S |
| 8b | Motor Shaft (After serial # 1S120329900...) | 15033MHLNC-N |
| 9 | Caster Set | 15044CSET |
| 9 | Caster without lock | 15044CNL |
| 9 | Caster with lock | 15044CL |
| 10 | Caster Receptacle | 15030P-1001 |
| 11 | Frame Linkage | 15030-FRLINK |
| 12 | Hand Control | 15033HC-G |
| 13 | Head Actuating Bar | 15030PN-1035 |
| 14 | Foot Actuating Bar | 15030PN-1036 |
| 15 | Foot Board Panel | 15044P |
| 15 | Head Board Panel | 15544HP-1 |
| 16a | Collar | 1503C |
| 17 | Motor | 15037MN |
| 17a | Motor Mount (Okin) | 15030P-1006 |
| 17a | For Serial No. 7R, 9R use | 15030-7RMM |
| 18 | Motor Cap | 15030MC |
| 19 | Motor Strap | 15030-MS |
| 20 | Bed Locking Pin | 15005P1018 |
| 21 | Locking Leg Pin | 15030P-1008 |
| 22 | Hand Crank | 15544C |
| 23 | Hi/Low Shaft | 1503UBS |
-
