Parts For Scout 3

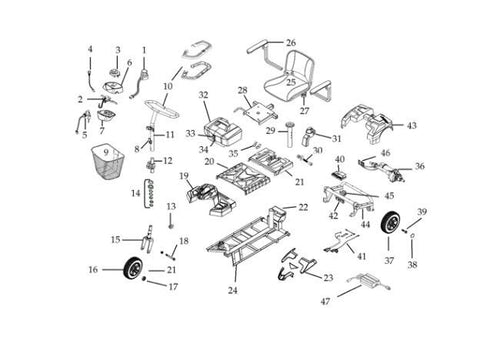

Please refer to parts diagram in order to select the correct replacement part for your Scout 3. Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
1 | Speed Dial | BC31001 |
1 | Speed Dial Knob | LRM412103-11 |
2 | Throttle Assy. | BC31009N |
3 | Battery Gauge (4 LEDs) | SC31004 |
3 | Battery Gauge (8 LEDs) | C11-076-00100 |
4 | Horn Button | SC31034 |
5 | Key Switch Assy. | BC31006 |
5 | Key | BCKEY |
6 | Upper Tiller Cover | SC31008 |
7 | Lower Tiller Cover | SC31009 |
8 | Basket Bracket | BC35051 |
9 | Basket | S35003-P |
10 | Handgrip Foam | SC31002 |
10 | Handgrip Plastic | SC31054 |
11 | Tiller | SC31001 |
12 | Tiller Swivel Assy. | SC31010 |
13 | Tiller Lock | C08-069-01000 |
14 | Tiller Bearing Set | BC31021 |
15 | Front Fork | SC31038 |
16 | Front Wheel Black | SC31043 |
16 | Deluxe Front Wheel | SC31044-D |
18 | Front Axle | SC31046 |
19 | Front Shroud | SC31039 |
20 | Footrest Shroud | SC31024 |
21 | Battery Box Shroud | SC31027 |
22 | Disconnect Handle Assy. | SC31019 |
23 | Red Decorations | SC31041 |
23 | Deluxe Red Decorations | SC31041-D |
23 | Blue Decorations | SC31042 |
23 | Deluxe Blue Decorations | SC31042-D |
24 | Front Frame | SC31040 |
25 | Black Seat | BC35045 |
25 | Deluxe Two Tone Seat | SC31035 |
25 | Deluxe Seat Cover Set | SC31035-SC |
26 | Right Armrest | BC35040R |
26 | Left Armrest | BC35040L |
26 | Arm Pad | BC953014 |
27 | Armrest Knob | S31052 |
28 | Seat Plate | SC31023 |
29 | Seat Post | SC31018 |
31 | Battery Box Hold Down | SC31047 |
32 | Battery Box & Batteries (12V 12ah) | SC31007 |
32 | Battery Box Only (12V 12ah) | SC31006 |
32 | 12ah Battery (need 2) | LRM402109 |
32 | Battery Box & Batteries (12V 20ah) | SC31050 |
32 | Battery Box Only (12V 20ah) | SC31051 |
32 | 21ah Battery Case | LRM412121 |
33 | Charger Socket & Harness | SC31031 |
24 | 20 A Circuit Breaker | BC2OACB |
35 | Battery Contacts | 531060 |
36 | Transaxle/Motor/Brake assy. | SC31053 |
36 | Transaxle | BC350112 |
36 | Motor | SC31036 |
36 | Electro-Magnetic Brake | SC31037 |
36 | Motor to Transaxle Coupler | C09-069-00300 |
37 | Rear Wheel Black | SC31003 |
37 | Deluxe Rear Wheel | SC31003-D |
38 | Hub Cap | SC31025 |
39 | Axle Bolt Assy. | SC31049 |
40 | CTE 45A Controller | SC31052 |
41 | Wire Harness | SC31026 |
42 | Connection Block Set | SC31033 |
43 | Rear Shroud | SC31011 |
44 | Rear Frame | SC31012 |
45 | Anti-Tip Wheel | 531026 |
46 | Motor Wire Harness | SC31020 |
47 | Charger | LRM302111 |
