Parts For Full-Electric Bariatric Bed, 48"

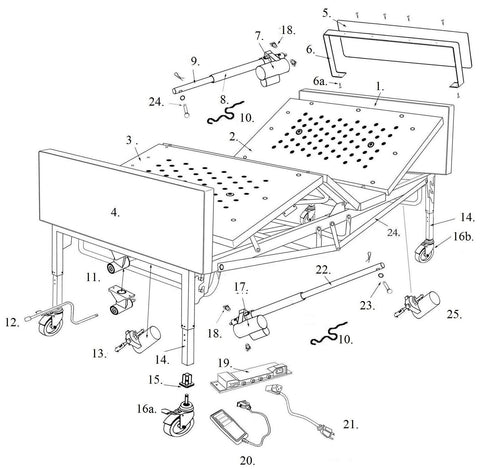

Please refer to parts diagram in order to select the correct replacement part for your Parts For Full-Electric Bariatric Bed, 48". Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
| 1 | Head Board (Head & Foot Board-15350) | 15350H |
| 2 | Head Frame (Head frame has joint pin) | 15309N |
| 3 | Foot Frame | 15320N |
| 4 | Foot Board | 15350F |
| 5 | Composite Panels Head | 15302P1005 |
| 5 | Composite Panels Foot | 15302P1006 |
| 6a | Head Board Frame | 15302P1051 |
| 6b | Foot Board Frame | 15302P1052 |
| 6c | Panel Screw | 15005PS1051 |
| 7 | Head Motor | 15032MHN |
| 8 | Motor Tube | 15005P1025 |
| 9 | Actuating Tube Head | 15300PH1014 |
| 10 | Head & Hi-Low Ext Cord | 15300CCN |
| 11 | Head & Foot Board Gear Box | 15005P1028 |
| 12 | Manual Crank | 15005P1023 |
| 14 | Adj Leg Head ( 565mm) (includes cable & plastic glide) (does not include part 15) | 15300P1015L |
| 14 | Adj Leg Foot ( 505mm) (includes cable & plastic glide) (does not include part 15) | 15300PF1015L |
| 15 | Caster Receptacle | 15300EC |
| 16a | Caster with Lock | 15300CL |
| 16b | Caster without Lock | 15300C |
| 17 | Foot Motor | 15300MF |
| 18 | Quick Release Spring Knob | 15005P-1028 |
| 19 | 4 Port Junction Box | 15302JB-4PORT |
| 20 | Hand Control | 15005HCN |
| 21 | Power cord | 15005PC |
| 22 | Actuating Tube Foot Motor | 15300P1014 |
| 23 | Attachment Pin & Hardware | 15300P1016 |
| 24 | Frame Support Rail | 15300FSR |
| 25 | Hi-Low Motor | 15302HL |
-
$200.00 -
$639.00 -
$647.09 -
$917.15
