Parts For Drive 790 Steerable Aluminum Knee Walker

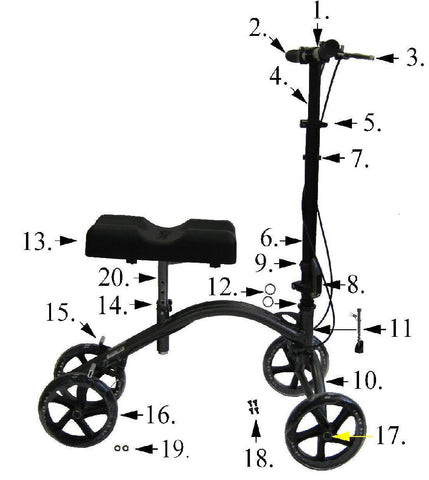

Please refer to parts diagram in order to select the correct replacement part for your Parts For DV8 Steerable Aluminum Knee Walker Model #790. Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
| 1 | Handle Bar | 9503H79001 |
| 2 | Hand Grips | 9503H79002 |
| 3a | Left Brake Assembly | 9503H79003 |
| 3b | Right Brake Assembly | 9503H79004 |
| 4 | Handle Bar Column | 9503H79005 |
| 5 | Handle Bar Adj. Lock | 9503H79006 |
| 6 | Steering Column | 9503H79007 |
| 7 | Brake Cable Guide | 9503H79008 |
| 8 | 9503H79002B | |
| 10 | Steering Fork | 9503H79011 |
| 11 | Column To Fork Locking Bolt | 9503H79012 |
| 12 | Fork Stem Bearing (Pair) | 9503H79013 |
| 13 | Knee Pad | 9503H79014 |
| 14 | Knee Pad Height Knob | 9503H79015-N |
| 15a | Left Wheellock | 9503H79016 |
| 15b | Right Wheellock | 9503H79017 |
| 16 | Caster | 9503H79018 |
| 17 | Caster Axle | 9503H79019 |
| 18 | Axle Set Screws | 9503H79020 |
| 19 | Front Wheel Bearing | 9503H79021 |
-
