Delta™ Ultra- Light 1000 Semi-Electric Bed Replacement Parts
Vendor: Drive Medical
Parts For Delta™ Ultra- Light 1000, Semi-Electric Bed

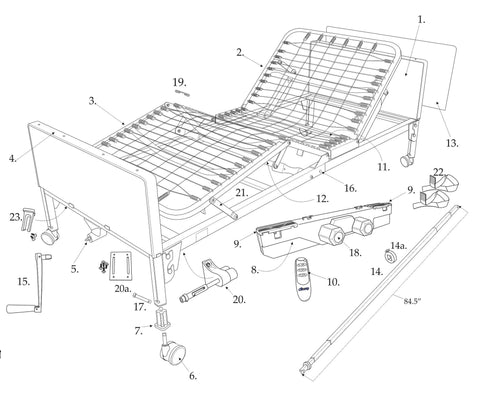

Please refer to parts diagram in order to select the correct replacement part for your Parts For Delta™ Ultra- Light 1000, Semi-Electric Bed. Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
| 1 | Head Board | 15544H |
| 1 | Foot Board | 15544F |
| 2 | Head Spring Section | 15541 |
| 3 | Foot Spring (15549 plus parts 12 & 12a) | 15548 |
| 4 | Head Board Panel Frame | 15544HPF |
| 4 | Foot Board Panel Frame | 15544FPF |
| 5 | Head Board Gear Assembly | 15544HGB |
| 5 | Foot Board Gear Assembly (w/o crank) | 15544FGB |
| 6 | Caster without lock | 15044CNL |
| 6 | Caster with lock | 15044CL |
| 6 | Caster Set | 15044CSET |
| 8 | Motor | 15038MO |
| 9 | For Serial No. 7R, 9R use | 15030-7RMM |
| 10 | Hand Pendant Glow In The Dark | 15030HC-G |
| 10 | Clip | 15030HC-G-C |
| 11 | Head Actuating Bar | 15030PN-1035 |
| 12 | Foot Actuating Bar | 15030PN-1036 |
| 13 | Foot Board Panel | 15044P |
| 14 | Hi-Lo Drive Shaft (with Collar) | 15030UBS |
| 14a | Collar | 1503C |
| 15 | Hand Crank | 15544C |
| 16 | Bed Locking Pin | 15005P1018 |
| 17 | Locking Leg Pin | 15030P-1008 |
| 18 | Motor Cap | 15030MC |
| 19 | Sleep surface hook | 15005P-1040 |
| 20 | Transistion Gear Box | 15544GBD |
| 20a | (After serial # 1S120329900...) | 15544GBMB |
| 21 | Frame Linkage | 15030-FRLINK |
| 22 | Motor Strap | 15030-MS |
| 23 | Hand Crank Clip | 15544F-CH |
| 24 | Bed Components | 15030 |
| 25 | Head Board Panel | 15544HP-1 |
| 26 | Motor Mount (Okin) | 15030P-1006 |
| 27 | Caster Receptacle | 15030P-1001 |
-
