Parts For Cobra GT4

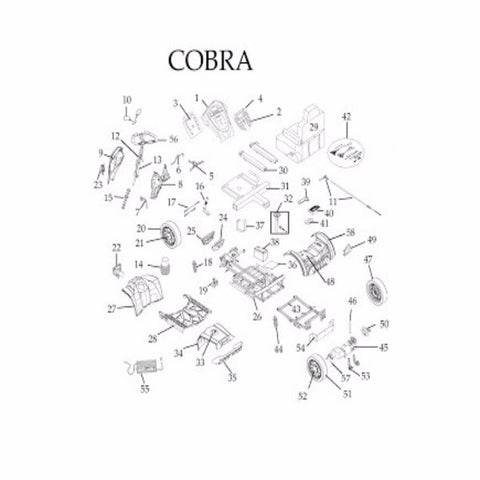

Please refer to parts diagram in order to select the correct replacement part for your Cobra GT4. Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
1 | Upper Tiller Cover | S08-062-00165 |
2 | Control Panel Overlay | C10-062-00200 |
3 | Tiller PC Board | C10-051-00507 |
4 | Battery Indicator Overlay | C10-062-00300 |
5 | Throttle | S12-051-00100 |
6 | Key Switch | C18-001-01501 |
6 | Key | C37-001-02300 |
7 | Charger Port | C12-051-00200 |
8 | Rear Tiller Cover | S08-062-00300 |
9 | Front Tiller Cover Grey | S08-062-00477 |
10 | Mirror Set Grey | S37-062-00177 |
11 | Hand Brake Assembly | S35-062-00100 |
11 | Brake Handle | C35-045-00300 |
11 | Cable Assembly | S35-062-00300 |
11 | Brake Cable | C35-062-00101 |
12 | Tiller Assembly | S02-062-00100 |
13 | Tiller Tilt Cylinder | C02-029-00200 |
14 | Tiller Boot | C25-052-00100 |
15 | Tiller Bearing Set | S02-001-00601 |
16 | "L" Steering Axle | S03-029-00200 |
17 | Tie Rod Set | S03-062-00100 |
18 | Front Shock Absorber 150# | C03-062-00300 |
19 | Shock Absorber Arm Assy. Rt | C03-022-02108 |
19 | Shock Absorber Arm Assy. Lt | C03-022-02208 |
20 | Front Wheel Assy. | S05-062-00300 |
22 | Headlight Assy. | C13-062-00100 |
23 | Front Signal Light Rt. | C15-062-00102 |
23 | Front Signal Light Lt. | C15-062-00502 |
24 | Front Bumper | C01-062-00300 |
25 | Front Bumper Cover | C08-062-00501 |
26 | Front Frame | S01-062-00100 |
27 | Front Shroud Grey | S08-062-00277 |
28 | Middle Shroud Grey | S08-062-00777 |
29 | Seat Assembly 20" with Arms | S07-062-00100 |
29 | Seat Assembly 22" with Arms | S07-062-0020 |
30 | Seat Slide Set | C07-016-00600 |
33 | Seat Post Boot | C25-039-00100 |
34 | Main Battery Shroud Grey | S08-062-00677 |
35 | Rear Battery Shroud | C08-062-01600 |
36 | Rubber Battery Pad | C25-022-00500 |
37 | Battery Strap | C31-029-00101 |
39 | Controller Cover | C26-051-00501 |
40 | Controller 160 amp | C10-029-00400 |
41 | Controller Holder | S10-062-00100 |
42 | Wire Harness | S18-062-00400 |
43 | Rear Frame | S01-062-00200 |
44 | Rear Shock Absorber 1050# | C04-062-00200 |
45 | Motor-Brake-Transaxle Assy. | S09-062-00400 |
45 | Trans Axle | C09-062-02100 |
45 | Motor | C09-062-02000 |
45 | Motor Brush | C09-022-02300 |
45 | Motor Brush Cap | C09-022-02700 |
45 | Electro-Magnetic Brake | C09-062-01100 |
46 | Freewheel Lever | C09-062-00903 |
47 | Rear Wheel Assy.Rt. | S06-062-00700 |
48 | Rear wheel Assy Lt. | S06-062-00600 |
48 | Tire | C06-051-00100 |
48 | Tube | C06-051-00201 |
49 | Hub Cap | C26-060-00501 |
50 | Brake Pad Assy. | C06-022-02600 |
51 | Rear Shroud Grey | S08-062-00577 |
52 | Rear Signal Light Rt. | C14-062-00201 |
52 | Rear Signal Light Lt. | C14-062-00301 |
53 | Anti-Tipper Wheel | S28-062-00100 |
54 | Rear Bumper | C01-062-01201 |
55 | 8 Amp Charger | C12-005-00800 |
56 | Handle Bar (fits either Lt or Rt side) | C02-062-00101 |
57 | Motor Axle Key | 29002W7011 |
58 | Rear Shroud Decoration Left | C0706202177 |
59 | Rear Shroud Decoration Right | C0806202077 |
