Parts For Cirrus Plus EC

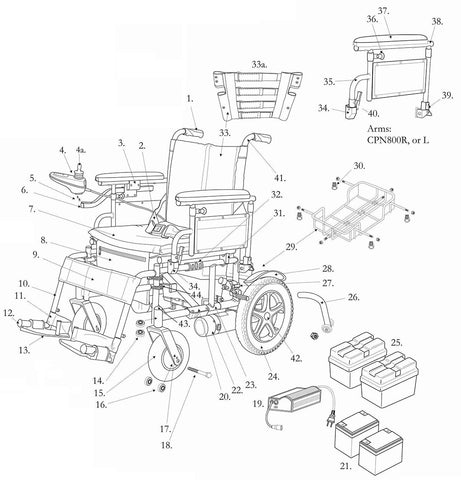

Please refer to parts diagram in order to select the correct replacement part for your Cirrus Plus EC. Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
| 1 | Handgrip | STDS871 |
| 2 | Seat Belt | STDS850 |
| 3 | Arm Clamp | CPN6205 |
| 4 | Refurbished | CP6200PRB |
| 4 | Joystick Tip | CP6200T |
| 5 | Joystick Screws | SI69001 |
| 6 | Joystick Arm | CP6205P |
| 7 | Seat Upholstery:16" | CP8002-16 |
| 7 | Seat Upholstery:18" | CP8002-18 |
| 7 | Seat Upholstery:20" | CP8002-20 |
| 7 | Seat Upholstery:22" | CP8002-22 |
| 7 | Seat Cushion:16" | CP8001-16 |
| 7 | Seat Cushion:18" | CP8001-18 |
| 7 | Seat Cushion:20" | CP8001-20 |
| 7 | Seat Cushion:22" | CP8001-22 |
| 9 | Calf Strap 16" | CP6039 |
| 9 | Calf Strap 18" | CP8039 |
| 9 | Calf Strap 20" | CP2039 |
| 10 | Footrest | CPNSFR |
| 10 | Footrest | CPNSFL |
| 12 | Footrest Bumper | STDS1026 |
| 14 | Fork Stem Bearing | STDS1060 |
| 15 | Caster | CP8040 |
| 16 | Wheel Bearing | STDS1011 |
| 17 | Fork | CP1204 |
| 18 | Front Axle Bolt | CP1204-A |
| 19 | Charger | CPC |
| 20 | Crossframe:16 | CP8020-16 |
| 20 | Crossframe:18 | CP8020-18 |
| 20 | Crossframe:20 | CP8020-20 |
| 20 | Crossframe:22 | CP8020-22 |
| 21 | Batteries (ea. 2 needed) | LRA402208 |
| 22 | Motor Assm. | CP8050R |
| 22 | Motor Assm. Left | CP8050L |
| 22 | Brush | CP5201 |
| 22 | Brush Cap | CP5202 |
| 23 | Side Frame | CPN8017R |
| 23 | Side Frame Left | CPN8017L |
| 24 | Rear Wheel | CP8012 |
| 25 | Battery Case: 1 Plug | CP5211-1 |
| 25 | Battery Case: 2 Plug | CP5211-2 |
| 25 | Battery Case: Battery Cases Set | CP5115 |
| 25 | Battery Case: Cases with Batterries | CPLUSBATT |
| 26 | Anti-tipper | CP8025 |
| 27 | Brake | CP8035R |
| 27 | Brake | CP8035L |
| 28 | Fender | CPN801R |
| 28 | Fender | CPN801L |
| 29 | Folding Basket:16 | CP8015-16 |
| 29 | Folding Basket:18 | CP8015-18 |
| 29 | Folding Basket:20 | CP8015-20 |
| 29 | Folding Basket:22 | CP8015-22 |
| 30 | Basket Clip rear | CP5005C |
| 30 | Basket Clip front | CP5005CF |
| 31 | Seat Saddle | CPN8005 |
| 32 | Link 16 | CP8019-16 |
| 32 | Link 18 | CP8019-18 |
| 32 | Link 20 | CP8019-20 |
| 33 | Back Upholstery: 16" | CP8006-16 |
| 33 | Back Upholstery: 18" | CP8006-18 |
| 33 | Back Upholstery: 20" | CP8006-20 |
| 33 | Back Upholstery: 22" | CP8006-22 |
| 33 | Back: 16" | CP8005-16 |
| 33 | Back: 18" | CP8005-18 |
| 33 | Back: 20" | CP8005-20 |
| 33 | Back: 22" | CP8005-22 |
| 34 | Front Seat Saddle/Arm Receiver | CPN8008R |
| 34 | Front Seat Saddle/Arm Receiver | CPN8008L |
| 35 | Lower Arm Frame | CPN8014 |
| 36 | Adjustment Knob | CPN8009 |
| 38 | Upper Arm Frame | CPN8004 |
| 39 | Pivot Bracket | CPN8006 |
| 40 | Release Lever | CPN8007 |
| 41 | Back Cane | CPN8017 |
| 42 | Hub Cap | CPN8021 |
| 43 | Dust Cap | STDS 1051 |
-
