Parts For Bobcat X3

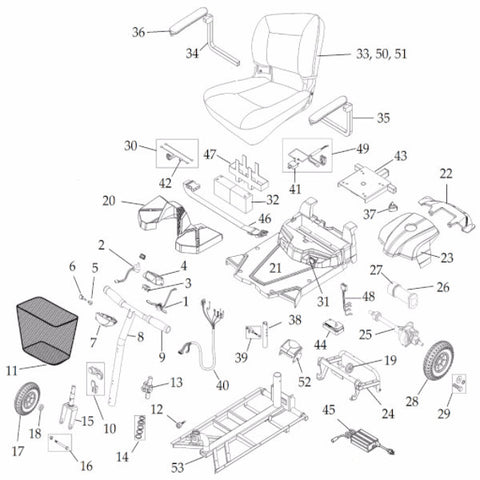

Please refer to parts diagram in order to select the correct replacement part for your Bobcat X3. Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
| 1 | Throttle Assy. | BC31009N |
| 2 | Speed Dial | C12-071-00100 |
| 3 | Battery Gauge | BC31208B |
| 4 | Upper Tiller Cover | C08-050-00301 |
| 5 | Ignition Switch | C18-071-00100 |
| 6 | Key | C18-071-00200 |
| 7 | Lower Tiller Cover | C08-071-00100 |
| 8 | Tiller | C02-071-00100 |
| 9 | Handgrip Foam | S31003 |
| 10 | Basket Bracket | BC35051 |
| 12 | Tiller Lock Set | C08-069-01001 |
| 13 | Tiller Swivel Assembly | C02-069-00401 |
| 14 | Tiller Bearing Set | C29-016-00301 |
| 15 | Front Fork | C03-070-00100 |
| 16 | Front Axle Assembly | BC31141 |
| 17 | Front Wheel | BC31142 |
| 18 | Front Wheel Bearing | 4900WB |
| 19 | Anti-Tip Wheel | S31026 |
| 20 | Front Shroud | C08-071-00300 |
| 21 | Footrest Shroud | C08-071-00200 |
| 22 | Rear Shroud | C08-071-00400 |
| 23 | Battery Cover Red | C08-071-00512 |
| 24 | Rear Frame | C01-070-00300 |
| 25 | Transaxle | BC350112 |
| 26 | Motor | C09-071-00200 |
| 27 | Electromagnetic Brake | C09-071-00300 |
| 28 | Rear Wheel | BC31132 |
| 29 | Front & Rear Wheel Bolt | S350016910 |
| 30 | Battery Harness & Jumper | C18-071-00601 |
| 31 | Charger Port | C18-071-00800 |
| 32 | Battery | BATT12V10AH |
| 33 | Seat/Seat Plate (no arms) | S07-071-00100 |
| 34 | Right Armrest Assembly | C07-071-00400 |
| 35 | Left Armrest Assembly | C07-071-00300 |
| 36 | Arm Pad & Screws | C07-071-00301 |
| 37 | Armrest Knob | S31052 |
| 39 | Seat Post Bolt Assembly | C07-071-00101 |
| 40 | Front Wire Harness | C18-071-00300 |
| 41 | 20 Amp Circuit Breaker | C07-071-00100 |
| 42 | 40 Amp Fuse | BC40AFUSE |
| 43 | Seat Plate | C07-050-00203-C |
| 44 | Controller | C10-034-00100 |
| 46 | Battery Hold Down Strap | C17-071-00200 |
| 47 | Battery Cradle | C17-071-00100 |
| 48 | Motor Cable | C18-071-00400 |
| 49 | Power Cable Set | C18-071-00500 |
| 50 | Seat Upholstery | S07-071-00102 |
| 51 | Back Upholstery | S07-071-00101 |
| 52 | Frame Latch | C08-069-02900-C |
| 53 | Front Frame | C01-069-00102 |
-
