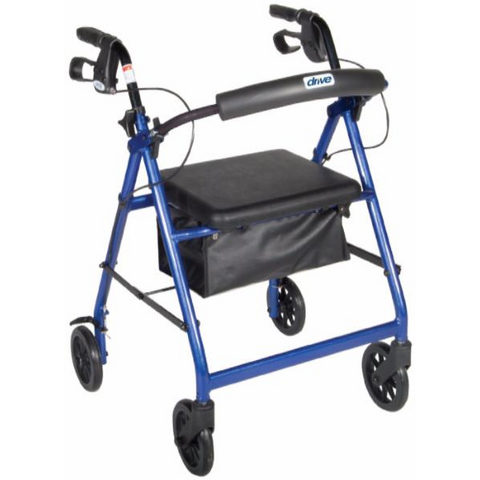

Parts For Drive Medical Rollator With 6" Casters
Vendor: Drive Medical
Parts For Aluminum Rollator, 6" Casters

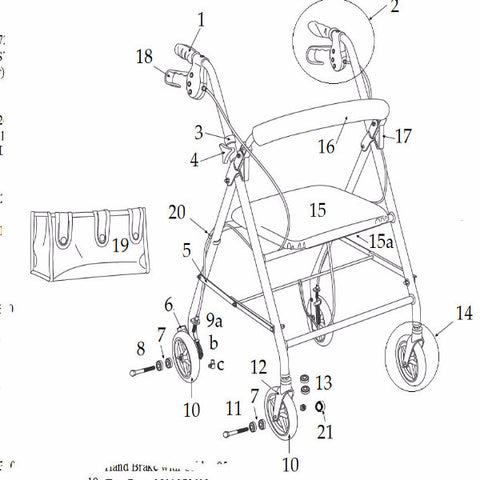

Please refer to parts diagram in order to select the correct replacement part for your Parts For Aluminum Rollator, 6" Casters. Have a question about a replacement part feel free to contact our customer service helpline at (855) 272-6335
| 1 | Handgrip | 9501S72602 |
| 2 | Handle Bar Assy. (includes brake, grip & handle bar) | 9501S72605L |
| 2 | Handle Bar Assy. (includes brake, grip & handle bar) | 9501S72605R |
| 3 | Anti-Rattler | 950300169901 |
| 4 | Height Adjustment Knob: 1 piece | 10208KN |
| 5 | Folding Hinge Assy. | 9501S72609 |
| 6 | Wheel Lock Left | 9501S761L |
| 7 | Axle Bearing | 9500002211 |
| 8 | Rear Axle Bolt | 10208RB |
| 9 | a. Cable Adjuster | 9500001232 |
| 9 | Spring | 9501S72616 |
| 9 | c. Cable Fastener | 9500004101 |
| 10 | Wheel | 9501S72600 |
| 11 | Front Axle | 95030015901 |
| 12 | Fork Assy. 2M Serial # | 9502M72610 |
| 12 | Fork Assy. 1P Serial # | 9501P72610 |
| 14 | Fork/Caster Assembly | 9502M72601 |
| 14 | Fork Caster Assy. 1P Serial # | 9501P72601 |
| 15 | Seat | 9501S72604 |
| 15 | Seat Brackets | 950340059901 |
| 15 | Seat Brackets 2M serial # | 950340059901-2M |
| 16 | Backrest | 9501S726BK |
| 17 | Backrest Pivot Bracket 2M | 9501S72603 |
| 18 | Brake & Cable | 9501S72607 |
| 19 | Tote Bag (12.5" X 8.5" X 5.5") | 9501S72608 |
| 20 | Cable Clip | 10208C |
| 21 | Axle Cap | 950330149901 |
| 22 | Wheel Lock Right | 9501S7261R |
-
