Replacement parts for the Drive Medical Durable 4 Wheel Rollator with 7.5" casters, item # 10257BL-1 (blue) and 10257RD-1 (red). These are genuine Drive Medical parts.

How to order the right part:

  1. Find the part on the parts diagram (the first photo). Each part has a number.
  2. Pick the same number from the Part menu. The Drive part # is shown in brackets so you can match it exactly.
  3. Check your serial number on the label on the frame. Parts marked 3Z serial are for rollators whose serial number starts with 3Z.

Not sure which part you need? Call us at (855) 272-6335 or use the chat button, and we'll help you find it.

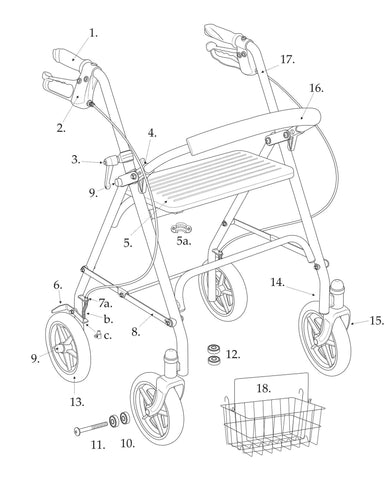

Parts diagram (tap the image to open it full size)

Drive Medical 10257 rollator parts diagram with numbered parts

# Part Drive part #
1 Hand Grip, Left 95032F260N15
1 Hand Grip, Right 95032F260N14
2 Hand Brake & Cable 9502F1025701
3 Height Adjustment Ratchet, pair 95032F260N10
4 Backrest Bracket, pair 9501S72603
5 Padded Seat & Brackets 9502F1025712
5 Padded Seat Brackets, pair 9502F1025713
6 Wheel Lock, Left 9502F1025710
6 Wheel Lock, Right 9502F1025711
7 Cable Adjuster 9500001232
7 Cable Fastener 9500004101
8 Folding Hinge Assembly 9502F1025707
9 Axle Cap STDS001000
10 / 19 Wheel Bearing, rear or caster STDS1011
10 / 19 Wheel Bearings, pair (3Z serial) 1992M-19
11 Caster Axle 9502F1025709
12 Fork Stem Bearing STDS1060
13 / 20 Wheel, Black, front or rear (fits older models too) 9503Z1025709
14 Dust Cap, pair 95032F260N06
15 Fork, Blue 9502F1025708
15 Fork, Red 9502F1025708R
16 Backrest 9502F1025705
17 Handlebar Assembly, Left (3Z serial, 35" handle, includes grip and brake) 9503Z1025715
17 Handlebar Assembly, Right (3Z serial, 35" handle, includes grip and brake) 9503Z1025714
18 Tote Bag, 2023 and later 9503Z1025716
18 Tote Bag, before 2023 9505W1026120
Not shown Basket (limited stock) 9502F1025706

Some older parts (hard seat, hard seat brackets, cable spring, gray wheels and casters, handlebar only, and tray) are no longer made by Drive Medical.
