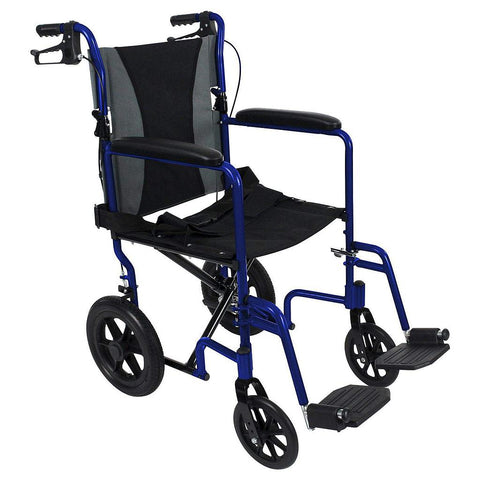

Uses:

• Mobility aid for transporting another individual
• Not suitable for self-transportation

Dimensions:

• Base when open: 21” by 32”
• Handle Height: 40”
• Front Wheels: 8”
• Back Wheels: 12”
• Folded: 8.25” by 30”
• Seat Widths: 19”
• Seat Depth: 16"

How To Assemble:

• Unfold the transport wheelchair by slowly pulling the armrests a part until the seat is fully extended
• Raise the hand grips upward until the backrest is fully extended and the bars snap into place with an audible click
• Position the footrests on the placement tabs on the transport chair frame. Swing the footrests towards the center to engage the locking lever

How To Adjust The Footrest Height:

• Remove the footrest by releasing the locking lever and swinging the footrest outward
• Using a 14mm wrench, loosen the bolt on the underside of the footrest assembly
• Raise or lower the footplate to the desired position, ensuring the foot plate will be a minimum of 2” from the floor for safe clearance
• Tighten the bolt and reinstall the footrest

How To Fold the Transport Wheelchair:

• Locate two black tabs on the back of the transport chair frame and push the tabs downward to release the handles
• Gently lower the hand grips until they are tucked neatly against the seat of the chair. Note: the hand grips do not extend under the seat
• Holding both armrests, pull the armrests together until the seat is completely folded

Care Instructions:

• Using a dry, soft cloth, wipe down the frame weekly. For thorough cleaning, use an automotive wax or similar product
• If exposed to moisture, dry immediately
• Do not use abrasive cleaners
